Detection
475
Recognition
240
Identification
160
Detection: 1.5 pixels / 0.75m = 2 pixels per meter
Recognition: 6 pixels / 0.75m = 8 pixels per meter
Identification: 12 pixels / 0.75m = 16 pixels per meter

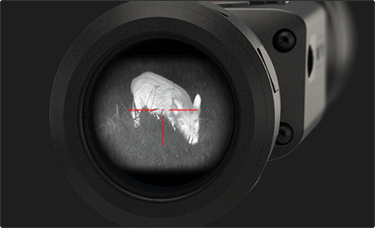

Classic Ergonomic Design
The familiarity of a traditional optics, our new eye piece assembly gives you a
traditional optics feel with a 3" eye relief.
HD Display
1280x720p
Sighting in your optics has never been easier with Easy Optics Zeroing.
Digital thermal imaging system with over 10+hrs of continuous battery power.
Recoil Resistant
Designed to withstand the pressures of high caliber, the Thor LT is made from Hardened
Aluminum Alloy.

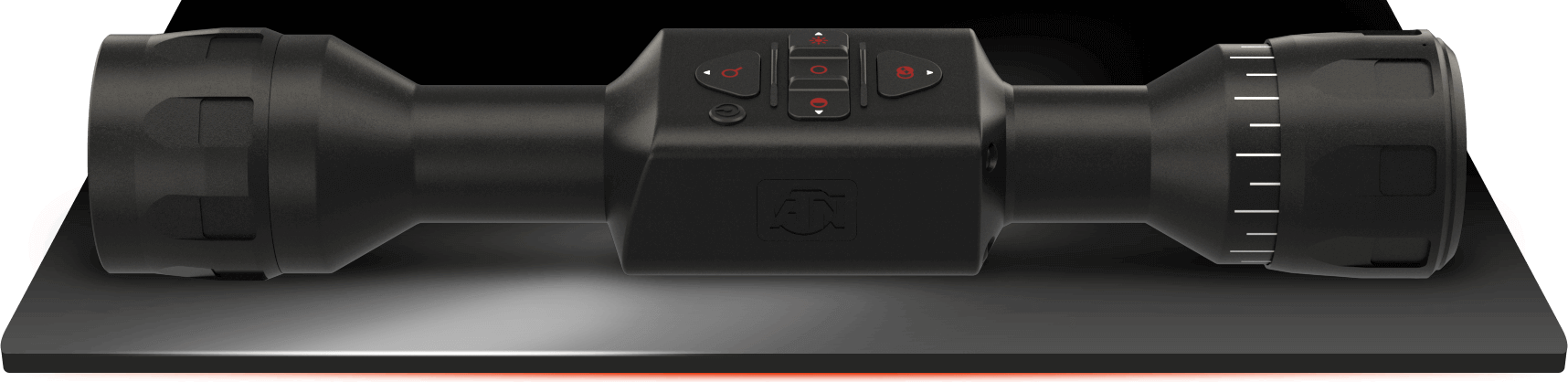

The ThOR LT is lightest Thermal System in the ATN ThOR line, providing more versatility to mount
to a Crossbow, Air R, or other platforms where weight is a critical factor.
1.4 lb
650 g
| done ATN ThOR LT 160 3-6x | ATN ThOR LT 160 4-8x | |
|---|---|---|
| SKU | TIWSTLT136X | TIWSTLT148X |
| Sensor | 160 x 120 px/17 µm 60 Hz | |

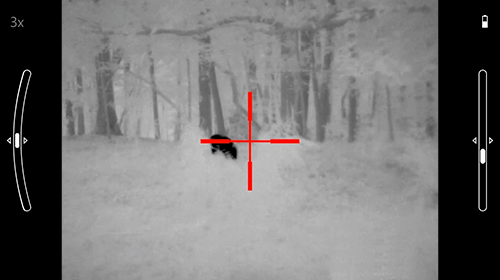

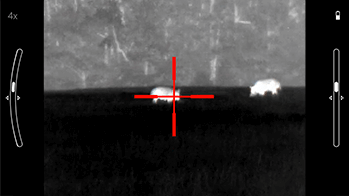

| Magnification | 3-6x | 4-8x |
| Field of view, degrees | 11x8.3 | 8.3x6.2 |
| Core | ATN Obsidian Core LT | |
| Micro display | 1280x720 HD Display | |
| Eye relief | 90 mm | |
| IP rating | Weather resistant | |
| Charging | USB, type C | |
| 3D Accelerometer | Yes | |
| Color modes | White Hot / Black Hot | |
| Reticles | Multiple Patterns | |
| Mount | 30mm Standard Rings (not included) | |
| Battery life (Li-ion) | 10+ hrs | |
| Operating Temperature | -20°F to +120°F / -28°C to 48°C | |
| Dimensions | 292x56x55 mm / 11.5” x 2.2” x 2.2” | |
| Weight | 1.4 lb / 650 g | |
| Human Detection Range | 475 | 625 |
| Human Recognition Range | 240 | 315 |
| Human Identification Range | 160 | 210 |
| Warranty | 3 years | |
* This product is subject to one or more of the export control laws and regulations of the U.S.
Government and it falls under the control jurisdiction of either the US Department of State or
the US BIS-Department of Commerce. It is unlawful and strictly
prohibited to export, or attempt to export or otherwise transfer or sell any hardware or
technical data or furnish any service to any foreign person, whether abroad or in the United
States, for which a license or written approval of the U.S.
Government is required, without first obtaining the required license or written approval from
the Department of the U.S. Government having jurisdiction. For further information please
contact ATN.
Eyecup
Cover
USB-C Cable
Lens Tissue
